1. Names of Principal Parts
1) battery pack
2) power input jack
3) 3V DC power input jack
4) power indicator
5) hot shoe
6) power controller and power mode controller
7) charger plug
8) charger 3V output plug
9) flash head power input plug
10) LED lamp mode controller
2. Power Matters:
2 ways of power supply are available for this macro ring LED light:
1) 2 AA alkaline dry batteries or rechargeable nickel metal hydrides
2) Exclusive charger for 3V power supply. (Warning: this charger is only used for LED light, used as charger for built-in battery is not allowed.)
3. Attention:
1) Clean the ends of battery to make sure the well connection.
2) Use the same two new AA battery to avoid explosion, fluid leading or overheat. Do not mix new batteries in use with semi-used batteries.
3) Do not dismantle or drain batteries or put batteries in water or fire, which may cause explosion. Do not charge the batteries except lithium and cadmium cell.
4) Take out the batteries if you don’t use the lamp for a long time.
4. Using Method:
1） Power Controller Installation
Input hot shoe block into the hot shoe on camera and rotate to tighten the hot shoe locker ring.

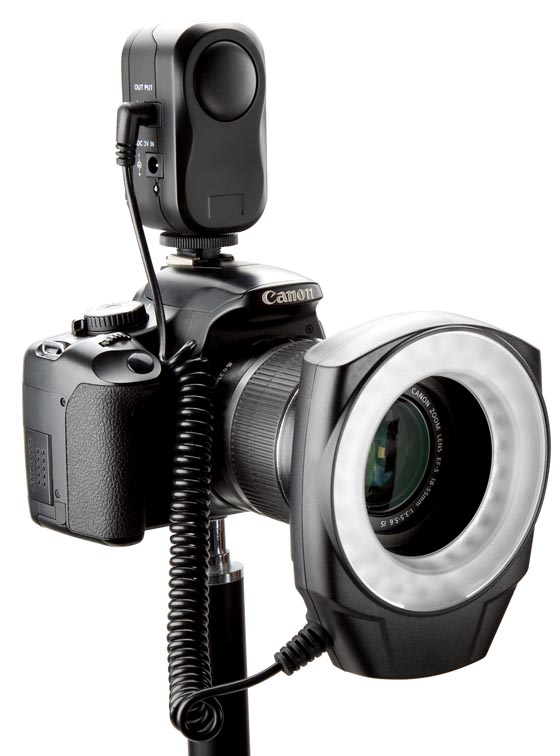

2）Installation of macro ring LED light to the camera
6 types of adapter rings available to suit the camera lens: 49mm, 52mm, 55mm, 58mm, 62mm, and 67mm.
3) How to Use
A. Power Supply By Battery
Install the battery and switch the power controller to “BATT”
B. Power Supply By Charger
Insert the round plug of charger into the ‘DC3V’ of power controller, and connect the other end with the DC power. And then turn the power switch of power controller to “DC3V”.
Recharge the nickel-hydrogen battery by exclusive charger is not allowed.
5) Lens Usage
Designed for macro-lens, the LED light could be used with other types of lens, but please take note the followings:
Some lens might turn after the installation of this macro ring LED light, which may affect camera focusing and go wrong. Please use manual focus when apply this kinds of lens.
# Due to its high power consumption, we strongly recommend rechargeable batteries. If common 1.5V battery is used, the flash will not enough and the service time will be short.
# Turn off the power when not used due to the high power consumption.
5. Specifications:
|
Effective Distance
|
3cm-1.0. (1.1-40inches)
|
|
Power Rate
|
Semi Power, Full Power
|
|
Service Time(2 AA Nickel-hydrogen Batteries)
|
About 1.5 hours
|
|
Size
|
(1) Power Controller: 9.1*4.4*4.4 cm
(2) Macro Ring Flash: 12.8*10.3*2.8 cm
|
|
Color Temperature
|
5500K~6500K
|
6. Notice:
1) Avoid clash or falling when used.
2) Do not use the flash in extreme high or cold temperature or in dampness.
3) Do not clean the stains or fingerprint with thinner, benzene or other detergents. Clean the light with soft wet cloth.
4) If the light is brought from colder room to warmer room, condensation will happen inside LED light and could damage the product. Do not use the light until the light reach the room temperature.
5) Keep it in dry, cool place with good ventilation when not used. |
