Features:
1. Improved design, all-metal material, CNC precision machining, surface oxidation treatment.
2.The Panoramic Panning Clamp allows you to properly stitch a set of panoramic images and produce a super-sized panorama , with a completely level horizon line.
3.The scale for horizontal rotation has 0-360° laser-engraved index marks in increments of 2.5°.
4.Very versatile jaw opening range of 33mm to39mm.
5.Can be mounted to any 3/8" - 16 post or 1/4" - 20 (using the included 1/4" bushing adapter).
Specification:
Panoramic Head with clamp and dovetail
Model no.: L-PC1
Main Material: aluminum alloy
Weight: 220g
Diameter: 60mm
Height: 32mm
Maximum Load: 12kg
Clamp: Srca Swiss compatible
Dovetail: Arca Swiss compatible
Screw: 3/8"-16
Screw adapter: 1/4" - 3/8" (can be widely applied to various professional tripods)
Quick release L plate
Model: MPU100
Material: aluminium alloy
Screw: 1/4"-20
Size: 110mm x 80mm x 40mm
Thickness: 10mm
Weight: 0.100kg
Quick release plate
Model: PU-70
Material: aluminium alloy
Screw: 1/4"-20
Size: 70mm x 38mm x 10mm
Weight: 36g

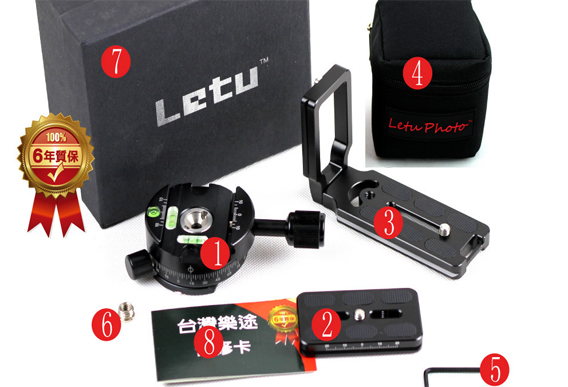

Package including:
Panoramic head x 1
Clamp x 1
Dovetail(Bottom quick release) x 1
L-shape quick release plate x 1
Quick release plate x 1
Hex screw driver x 1
Screw adapter x 1
|
