Features
|
Features
|
Software limit position, lower Pan Tilt failure rate
|
|
System
|
OS
|
Embedded Linux OS
|
|
System security
|
Three level user authority management
|
|
Online users
|
Support 4 online visitors simultaneously
|
|
DDNS
|
Free DDNS
|
|
Control protocol
|
ONVIF 2.4 protocol, high interoperability
|
|
Processor
|
Hisilicon processor,built-in ARM926 @Max. 440MHz and a high-speed video co-processor.
|
|
Reset
|
Long press for 15 seconds to restore back to factory settings
|
|
Collection
|
Image sensor
|
1/4inch 720p Progressive scan CMOS sensor
|
|
CMOS
|
Support AWB, AGC, BLC
|
|
Imaging area
|
4.40mm×2.52mm
|
|
SNR
|
≥41dB
|
|
Minimum illumination
|
0.8Lux/F1.４（colourful model ）,0.3Lux/F1.4（B&W mode）
|
|
Lens/viewing angle
|
3.6mm@F1.４/56.14˚
|
|
Night vision
|
Dual IR-CUT filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance
|
|
IR control
|
IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
|
|
Video
|
Compression Format
|
H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
|
|
Video coding process
|
Multi-stream：720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snapshot
|
|
Resolution
|
720p/VGA/QVGA
|
|
Bit Rate
|
CBR/VBR, output bit rate range：128～4096kbps
|
|
Max.Frame rate
|
25fps
|
|
Picture Adjustment
|
Contrast, brightness, saturation, chroma are adjustable.
|
|
Audio
|
Input
|
Built in -48dB Microphone
|
|
Output
|
Built in speaker(8Ω1Ｗ)`
|
|
Sampling frequency / width
|
8KHz/16bit
|
|
Compression format
|
ADPCM/32kbps
|
|
Network
|

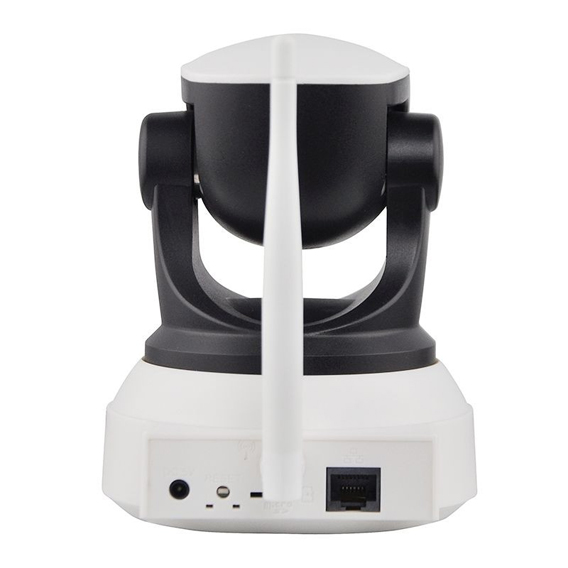

Interface
|
10Base-T / 100Base-TX, RJ45 connector
|
|
Network Protocol
|
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,ONVIF.etc.
|
|
WIFI
|
WiFi802.11b/g/n
|
|
Antenna
|
3dBi antenna，stronger signal, more stable
|
|
Wireless network security
|
One key setup WiFi ,don't need network cable .
|
|
Storage
|
Storage mode
|
Local storage / client storage
|
|
Interface
|
Micro SD/TF,support 128G TF record.
|
|
Pan-Tilt
|
P/T
|
Pan:270°,Tilt:80°
|
|
Preset Postion
|
Support up to 15 preset postions
|
|
Limit method
|
Software limit position, more accurate preset positions,lower Pan Tilt failure rate.
|
|
Alarm
|
Motion detection
|
Support motion detection
|
|
Alarm action
|
Video upload via email/FTP server，Mobile App alarm
|
|
Physical index
|
Rated Voltage
|
DC5/2A±0.3V
|
|
Power comsumption
|
Rated power：3.0Ｗ(IR ON)
|
|
Working environment
|
Working Temperature：-20～70℃，Working Humidity 90%
|
|
Weight
|
Gross Weight：625g （Note: in kind prevail）
|
|
Housing material
|
ABS plastics
|
|
Camera size
|
196*165*138 mm (L×W×H)
|
|

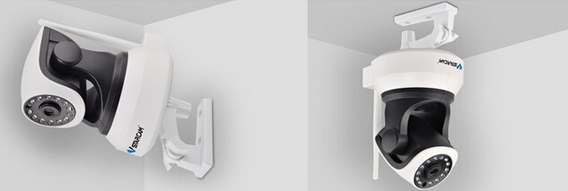

Installation
|
Wall mounting, ceiling mounting
|
