Display Spec.

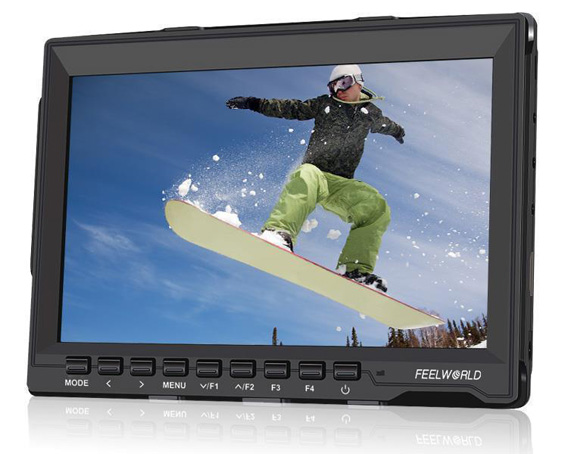

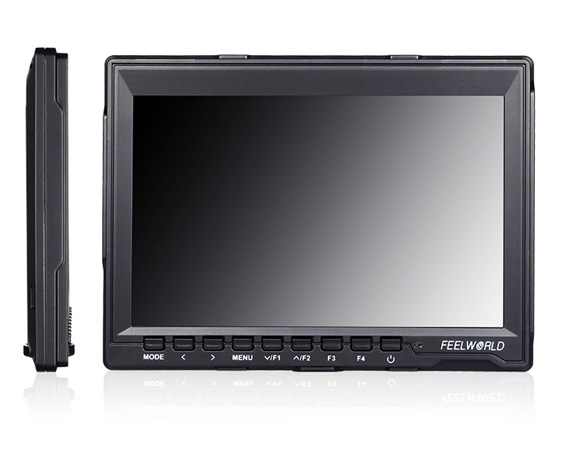

Model FW759
Screen Size 7" IPS
Resolution 1280×800 pixels
Dot pitch 0.11775(H) × 0.11775(V) mm
Aspect Ratio 16:10
Brightness 400cd/m²
Contrast Ratio 800:1
Backlight LED
Viewing Angle 89°/89°(L/R) 89°/89°(U/D)

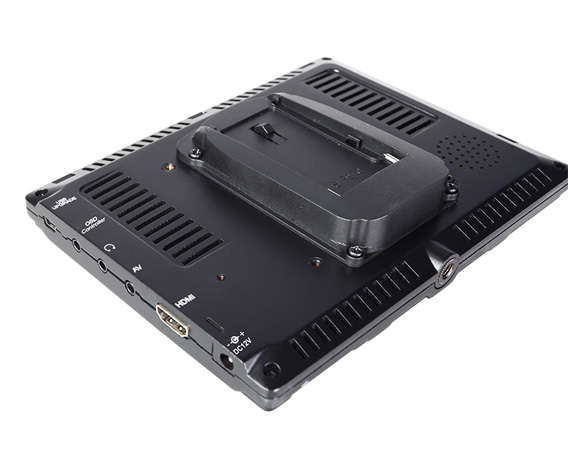

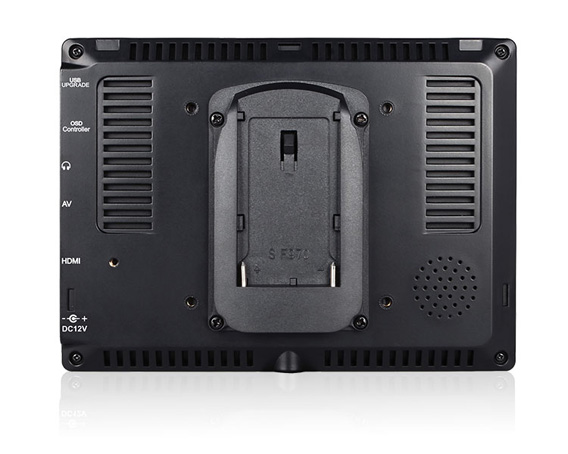

Input
1 X HDMI HDMI
1 X AV AV
1 X OSD controller Wire remote OSD controller
Audio
Audio Out Stereo Headphone, Speaker
HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
General
Input Voltage DC5.5～35V
Power Consumption ≤5W
Power Connector DC

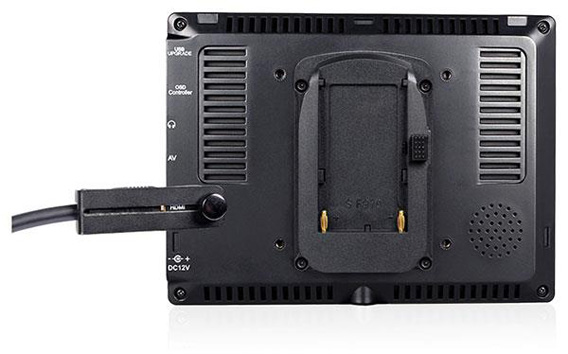

Battery Plate F970 (Standard); D28S, LP-E6 (Optional)
Working Temperature -20°C~50°C
Storage Temperature -30°C~60°C

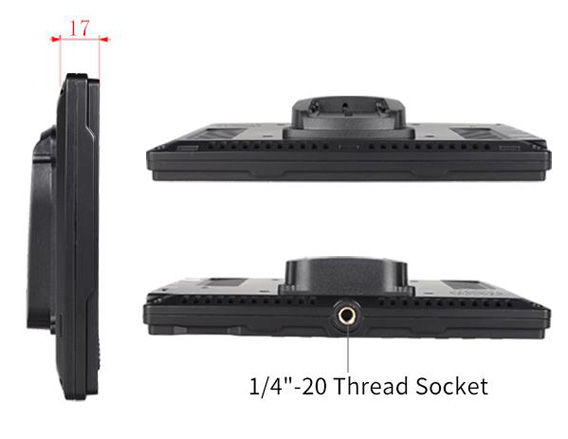

Install Way 1/4"-20 Thread Socket (1 bottom side)

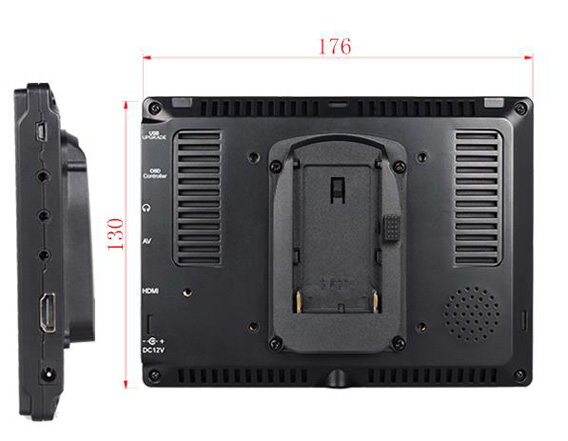

Unit Size 176L×130H×17D (mm)
Unit Weight 300g
Advanced Features
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red,Green,Blue,Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Flip (H, V, H/V)
* Image Freeze
* Custom Color Temperature

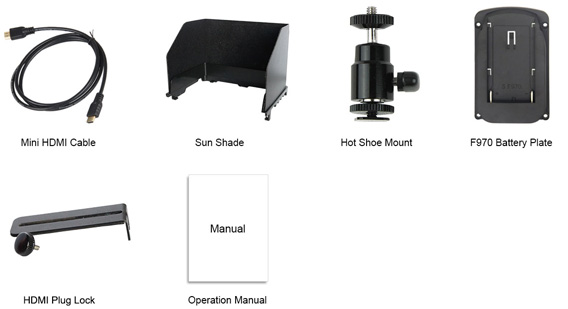

Standard Accessories:
1× Mini HDMI Cable

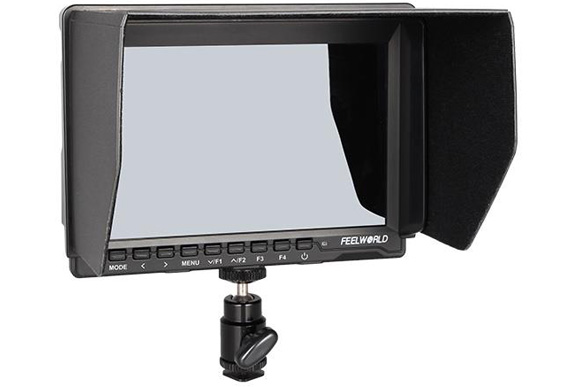

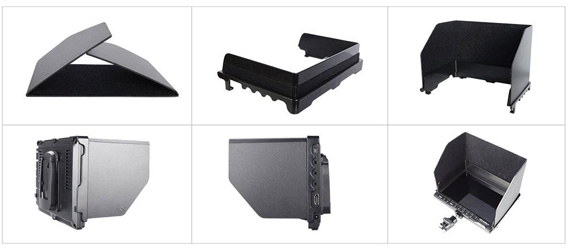

1× Sunshade
1× Hot Shoe Mount
1× F970 Battey Plate
1× HDMI Plug Lock
1× Operation Manual
|
